Ultrasonic Contact Angle-Beam Single Element Transducers

Written by Super User
Tagged under Ultrasonic probes
Thursday, 24 April 2014 11:36
font size decrease font size increase font size
Print
Email

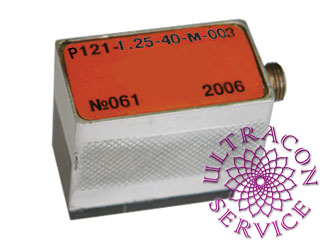

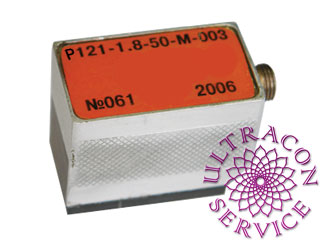

Ultrasonic contact angle-beam single element small-sized transducers

Designation	Testing range by SО-1 block	Probe angle by SО-2 block	X-value, up to	Effective frequency	Signal/noise ratio, no worse than	Overall dimensions, up to
Designation	mm	degr.	mm	MHz	dB	mm
P121-1.25-40-М-003	5-50	40±2	12	1.25±0.13	16	40 х 23 х 30
P121-1.25-45-М-003	5-50	45±2	15	1.25±0.13	16	40 х 23 х 30
P121-1.25-50-М-003	5-50	50±2	15	1.25±0.13	16	40 х 23 х 30
P121-1.25-60-М-003	5-50	60±2	15	1.25±0.13	16	40 х 23 х 30

Designation	Testing range by SО-1 block	Probe angle by SО-2 block	X-value, up to	Effective frequency	Signal/noise ratio, no worse than	Overall dimensions, up to
Designation	mm	degr.	mm	MHz	dB	mm
P121-1.8-40-М-003	5-50	40±2	10	1.8±0.18	16	40 х 23 х 30
P121-1.8-45-М-003	5-50	45±2	12	1.8±0.18	16	40 х 23 х 30
P121-1.8-50-М-003	5-50	50±2	12	1.8±0.18	16	40 х 23 х 30
P121-1.8-60-М-003	5-50	60±2	14	1.8±0.18	16	40 х 23 х 30

Designation	Testing range by SО-1 block	Probe angle by SО-2 block	X-value, up to	Effective frequency	Signal/noise ratio, no worse than	Overall dimensions, up to
Designation	mm	degr.	mm	MHz	dB	mm
P121-2.5-40-М-003	5-50	40±2	10	2.5±0.25	16	40 х 23 х 30
P121-2.5-45-М-003	5-50	45±2	10	2.5±0.25	16	40 х 23 х 30
P121-2.5-50-М-003	5-50	50±2	12	2.5±0.25	16	40 х 23 х 30
P121-2.5-60-М-003	5-45	60±2	12	2.5±0.25	16	40 х 23 х 30
P121-2.5-65-М-003	5-45	65±2	13	2.5±0.25	16	40 х 23 х 30
P121-2.5-68-М-003	5-40	68±2	13	2.5±0.25	16	40 х 23 х 30
P121-2.5-70-М-003	5-40	70±2	14	2.5±0.25	16	40 х 23 х 30

Designation	Testing range by SО-1 block	Probe angle by SО-2 block	X-value, up to	Effective frequency	Signal/noise ratio, no worse than	Overall dimensions, up to
Designation	mm	degr.	mm	MHz	dB	mm
P121-5-40-М-003	5-30	40±2	6	5±0.5	16	25 х 20 х 20
P121-5-45-М-003	5-30	45±2	6	5±0.5	16	25 х 20 х 20
P121-5-50-М-003	5-30	50±2	7	5±0.5	16	25 х 20 х 20
P121-5-60-М-003	5-20	60±2	8	5±0.5	16	25 х 20 х 20
P121-5-65-М-003	5-20	65±2	8	5±0.5	16	25 х 20 х 20
P121-5-68-М-003	5-15	68±2	8	5±0.5	16	25 х 20 х 20

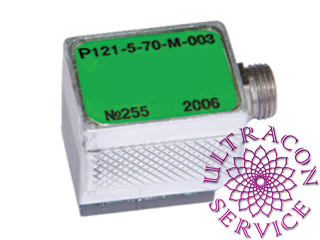

P121-5-70-М-003	5-15	70±2	8	5±0.5	16	25 х 20 х 20
P121-5-73-М-003	5-15	73±2	9	5±0.5	16	25 х 20 х 20

Designation	Testing range by SО-1 block	Probe angle by SО-2 block	X-value, up to	Effective frequency	Signal/noise ratio, no worse than	Overall dimensions, up to
Designation	mm	degr.	mm	MHz	dB	mm

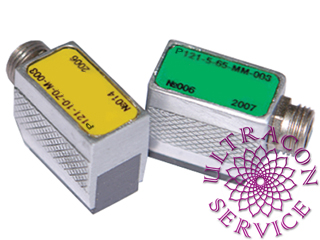

P121-5-50-ММ-003	5-25	50±1	6	5±0.5	16	20 х 12 х 17
P121-5-65-ММ-003	5-20	65±2	6	5±0.5	16	20 х 12 х 17
P121-5-70-ММ-003	5-15	70±2	7	5±0.5	16	20 х 12 х 17

Designation	Testing range by MD2-0 block	Probe angle by SО-2 block	X-value, up to	Effective frequency	Signal/noise ratio, no worse than	Overall dimensions, up to
Designation	mm	degr.	mm	MHz	dB	mm
P121-10-65-М-003	0.7-25*	65±2	6	10±1	16	20 х 12 х 17
P121-10-70-М-003	0.7-20*	70±2	6	10±1	16	20 х 12 х 17

• operating temperatures range is from minus 10 to plus 50 °С;

• "M"- smallsized, "MM"- miniature;

* on MD2-0-1 sample

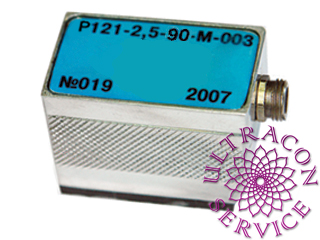

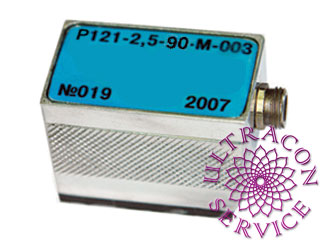

Contact angle-beam single element surface wave transducers

Designation	Effective frequency	Overall dimensions, up to
Designation	MHz	mm
P121-1.25-90-М-003	1.25±0.13	40 х 23 х 30
P121-1.8-90-М-003	1.8±0.18	40 х 23 х 30
P121-2.5-90-М-003	2.5±0.25	40 х 23 х 30
P121-5-90-М-003	5±0.5	25 х 20 х 20

• operating temperatures range is from minus 10 to plus 50 °С;

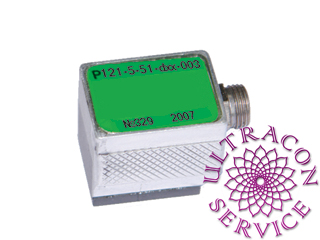

Ultrasonic contact angle-beam single element transducers for ultrasonic testing of small-diameter pipes

Designation	Wedge angle	Testing range	Effective frequency	Pipes diameters (хх)	Pipes diameters (хх)	Overall dimensions
Designation	degr.	mm	MHz	mm	dB	mm
P121-5-40-dхх-003	40	9…14	5±0.5	25; 28; 30; 32; 36; 38; 42; 45; 48;50; 57; 60; 76; 83; 89; 102; 108; 114; 133; 159; 219	16	25 х 20 х 20
P121-5-51-dхх-003	51	9…12
P121-5-53-dхх-003	53	6...9
P121-5-55-dхх-003	55	3.5...6
P121-5-55-dхх-003*	58	4...6.5

* - intended for welds from austenitic steel

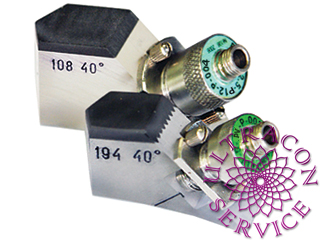

Special ultrasonic contact assembled transducers for pipe bends testing

Assembled transducer	Transducer		Wedge
Designation	Resonator designation	Effective frequency	Element diameter	Wedge angle (хх)	Pipes diameters (yy)
Designation	Resonator designation	MHz	mm	degr.	mm
P121-2.5-хх-dyy-Р-003*	P111-2.5-P12-R-003	2.5±0.25	12	30, 40	25; 28; 30; 32; 36; 38; 42; 45; 48; 50; 57; 60; 76; 83; 89; 102; 108; 114; 133; 159; 219; 273; 325; 426
P121-5-хх-dyy-Р-003*	P111-5-P8-R-003	5±0.5	8

* These probes can be delivered at an extra cost.

- operating temperatures range is from minus 10 to plus 50 °С.

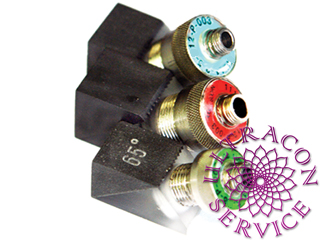

Special ultrasonic contact angle-beam assembled transducers

Assembled transducer		Transducer
Designation	Testing range by SО-1 block	Probe angle by SО-2 block	Resonator designation	Effective frequency	Element diameter
Designation	mm	degr.	Resonator designation	MHz	mm
P121-2.5-40-R-003*	5-50	40±2	P111-2.5-P12-R-003	2.5±0.25	12
P121-2.5-45-R-003*	5-50	45±2
P121-2.5-50-R-003*	5-50	50±2
P121-2.5-60-R-003*	5-45	60±2
P121-2.5-65-R-003*	5-45	65±2
P121-2.5-70-R-003*	5-40	70±2

* These transducers can be delivered at an extra cost.

- operating temperatures range is from minus 10 to plus 50 °С.
