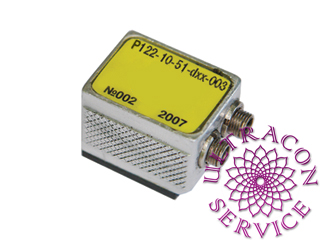

Ultrasonic contact angle-beam dual element transducers for UT of small-diameter pipes with thin walls
| Designation | Wedge angle | Testing range | Effective frequency | Pipes diameters (хх) | S/N ratio | Overall dimensions |
| degr. | mm | MHz | mm | dB | mm | |
| P122-5-51-dхх-003* | 51 | 2…5 | 10±1 | 25; 28; 30; 32; 36; 38; 42; 45; 48; 50; 57; 60; 76; 83; 89; 102; 108; 114; 133; 159; 219 |
16 | 25 х 20 х 20 |
| P122-5-53-dхх-003* | 53 | |||||
| P122-5-55-dхх-003* | 55 |
* These transducers can be delivered at an extra cost.
- operating temperatures range is from minus 10 to plus 50 °С.

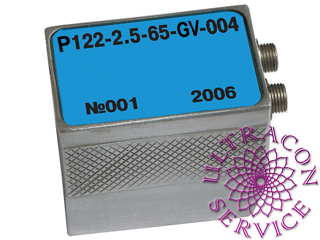

Contact angle-beam dual element head wave probes
| Designation | Testing range by SО-1 block | Probe angle by SО-2 block | X-value, up to | Effective frequency | Overall dimensions, up to |
| mm | degr. | mm | MHz | mm | |
| P122-2.5-65-GV-003* | 5-50 | 65±2 | 14 | 2.5±0.25 | 35 х 23 х 28 |
* These transducers can be delivered at an extra cost.
- transducers with the required frequency, element diameter and probe angle can be produced.
- operating temperatures range is from minus 10 to plus 50 °С.
